Name: AmScope HHD1300-QSMS10 1.3 MP Professional Handheld Digital USB Microscopes w/ 10X-280X Magnification, LED Ring Illuminator, and Ball-Joint Stand
Brand: AmScope
SKU: HHD1300-QSMS10
Availability: InStock

AmScope HHD1300-QSMS10 1.3 MP Professional Handheld Digital USB Microscopes w/ 10X-280X Magnification, LED Ring Illuminator, and Ball-Joint Stand

$275.10

SKU: HHD1300-QSMS10 Category: Shop

AmScope HHD Series 1.3 MP Professional Handheld Digital USB Microscopes with 10X-280X Magnification, LED Ring Illuminator, and Ball-Joint Stand

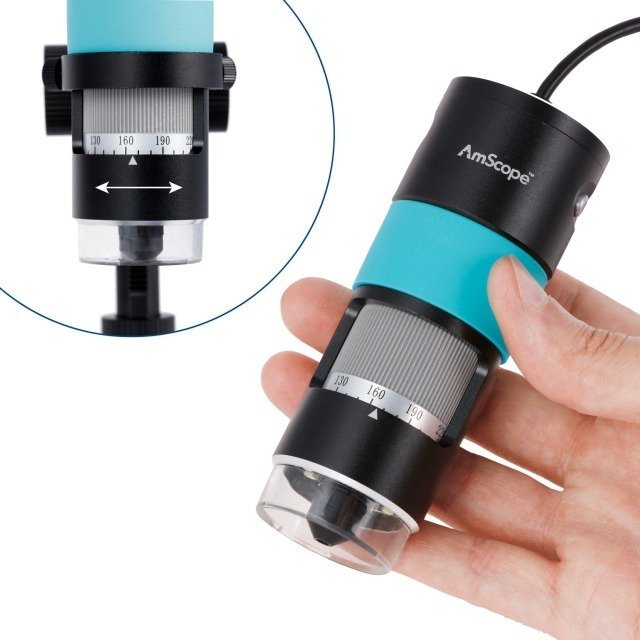

Professional quality USB powered handheld digital microscope with continuous 10X to 280X magnification.
Built-in 1.3MP (38FPS@1520×856) digital camera for capturing high-quality images and videos.
5G high grade optical glass with multi-layer anti-reflection coating.

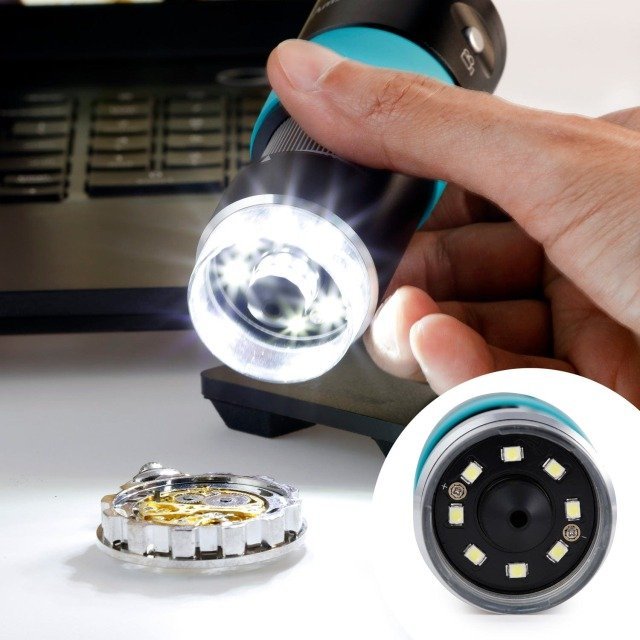

8 LED ring illuminator with adjustable illumination.
The perfect handheld microscope for manufacturing, quality control inspectors, medical professionals, scientific researchers, and even hobbyists for a multitude of specimens and subjects.
User-friendly software for Windows offers editing/processing and advanced features including Stitching and EDF for Windows/Mac OS/Linux.

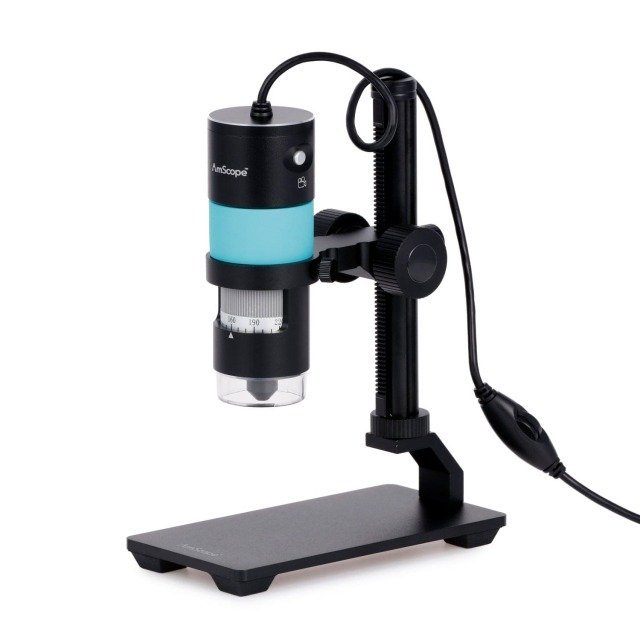

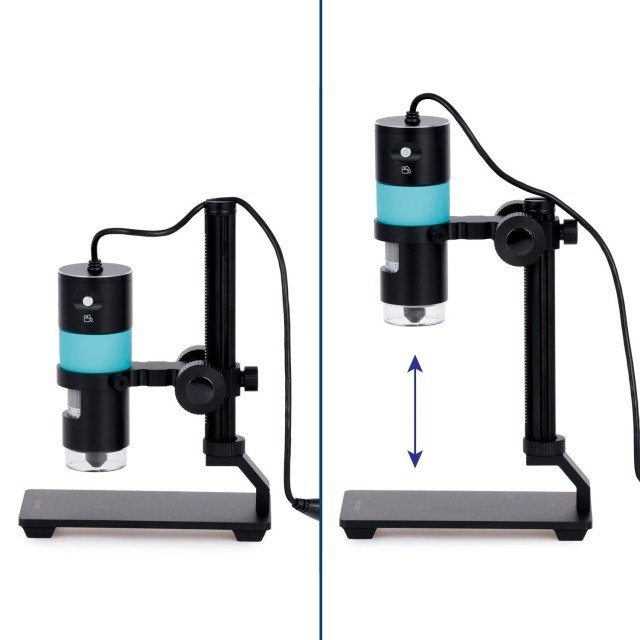

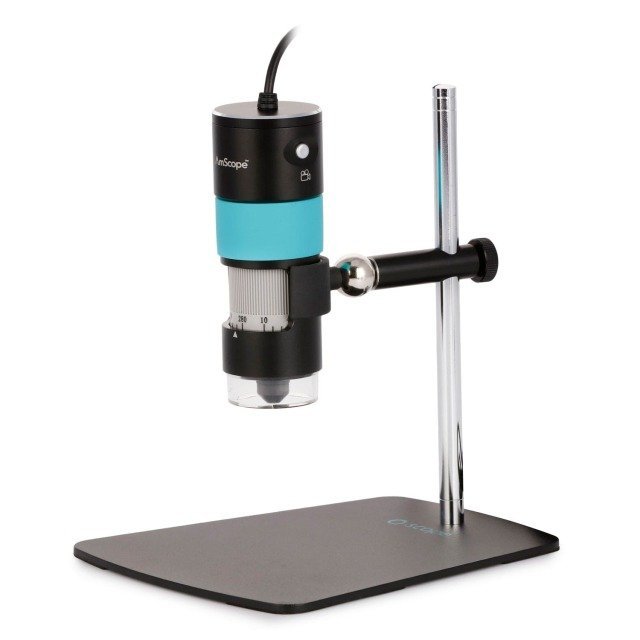

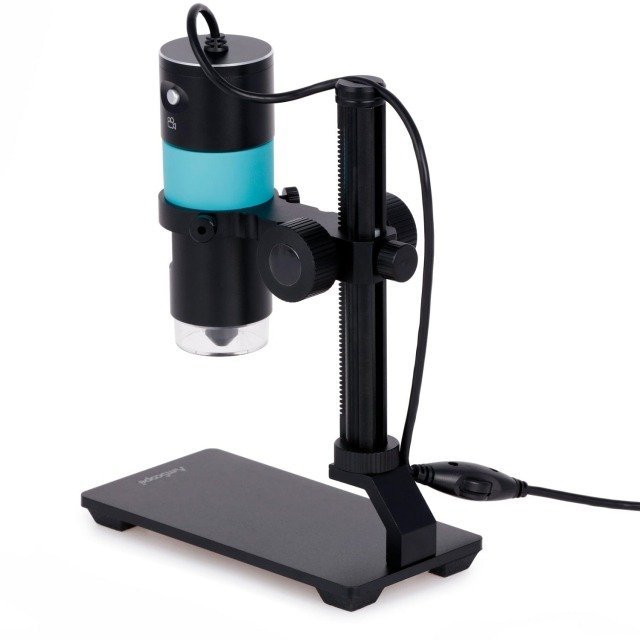

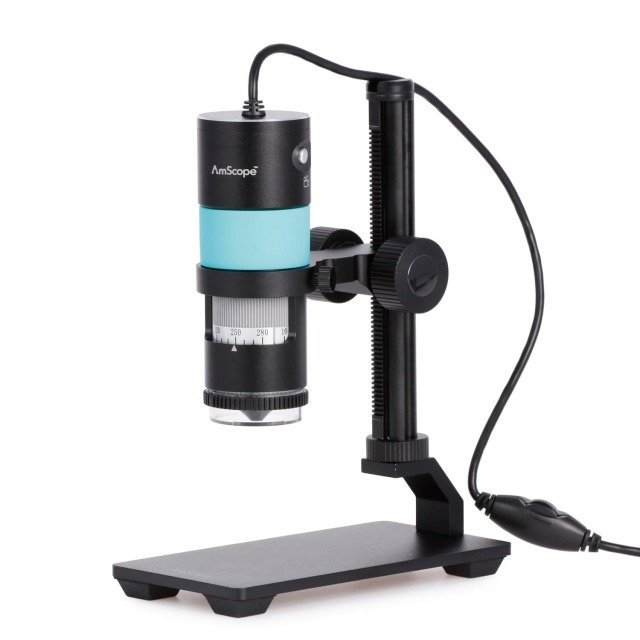

Includes a simple metal track stand and a ball-joint stand that allows for steady shots when viewing at higher magnifications, minimizing shaking and keeping your specimen in sharp focus.

The HHD Professional Series Portable USB Microscopes are easy to use, high power scopes. With continuous magnifications from 10x to 280x, it’s ideal for quality control inspectors, medical professionals, and scientific researchers in addition to hobbyists and beginners for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides under transmitted illumination.

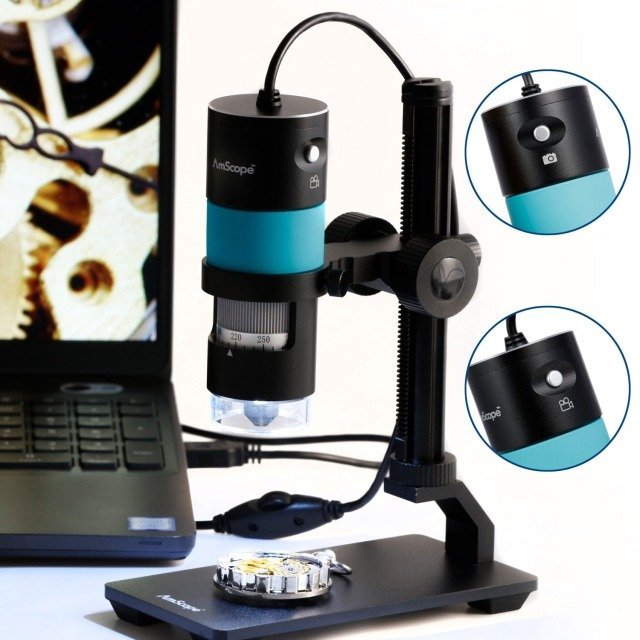

Using the AmScope Software, you can capture your specimens using the built-in 1.3MP camera. Press the shutter to save images and high-resolution video directly to your PC via USB connection. The 8 LED illuminator ensures your specimens are clear and bright. Includes a basic metal stand as well as a ball-joint stand that allow for steady shots and come in handy when viewing at higher magnifications, minimizing shaking and keeping your specimen in sharp focus.

Camera Specifications

Model Number	Sensor	Size (mm)	Dark Signal Sensitivity	FPS/Resolution	Binning	Exposure
HHD1300	1.3M/IMX307(C)	1/2.8″(4.41×2.48)	2.9×2.9	1300mv with 1/30s, 0.15mv with 1/30s	38@1520×856<br>38@760×428	1 X 1<br>1 X 1
HHD2100	2.1M/IMX307(C)	1/2.8″(5.56×3.13)	2.9×2.9	1300mv with 1/30s, 0.15mv with 1/30s	38@1920×1080<br>38@960×540	1 X 1<br>1 X 1
HHD5100	5.1M/IMX335(C)	1/2.8″ (5.18×3.89)	2.0×2.0	505mv with 1/30s, 0.13mv with 1/30s	26@2592×1944<br>26@1280×960<br>26@640×480	1 X 1<br>1 X 1<br>1 X 1
HHD8300	8.3M/IMX415(C)	1/2.8″ (5.57×3.13)	1.45×1.45	300mv with 1/30s, 0.13mv with 1/30s	30@3840×2160<br>30@1920×1080<br>30@1280×720<br>30@960×540	1 X 1<br>1 X 1<br>1 X 1<br>1 X 1
HHD5100-P	5.1M/IMX335(C)	1/2.8″ (5.18×3.89)	2.0×2.0	505mv with 1/30s, 0.13mv with 1/30s	26@2592×1944<br>26@1280×960<br>26@640×480	1 X 1<br>1 X 1<br>1 X 1
HHD8300-P	8.3M/IMX415(C)	1/2.8″ (5.57×3.13)	1.45×1.45	300mv with 1/30s, 0.13mv with 1/30s	30@3840×2160<br>30@1920×1080<br>30@1280×720<br>30@960×540	1 X 1<br>1 X 1<br>1 X 1<br>1 X 1

Technical Specifications

Category	Specification	Value
Hardware Specs	Spectral Range	380-650nm (with IR-cut Filter)
	White Balance	Auto White Balance
	Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
	Recording System	Still Image and Video
	Cooling System	Natural
	Operating Environment: Operating Temperature (in Celsius)	-10 ~ 50
	Operating Environment: Storage Temperature (in Celsius)	-20 ~ 60
	Operating Environment: Operating Humidity	30-80%RH
	Operating Environment: Storage Humidity	10-60%RH
	Power Supply	DC 5V over PC USB Port
Optical Specs	Optical Lens	5G High Grade Optical Glass with Multi-layer Anti-reflection Coating
	Optical Magnification	0.1x~3.3x(33x)
	Illumination	8 LEDs

Magnification, Working Distance, Field of View

Magnification	Working Distance	Field of View (X)	Field of View (Y)
10	134.63mm	48.09mm	27.07mm
50	33.51mm	9.62mm	5.41mm
100	20.32mm	4.81mm	2.71mm
150	15.97mm	3.21mm	1.80mm
200	13.75mm	2.40mm	1.35mm
250	12.42mm	1.92mm	1.08mm
280	11.85mm	1.72mm	0.97mm

Software

Specification	Windows Version	Mac/Linux Versions
OS Requirements	XP/Vista/7/8/10	Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 4GB RAM	N/A
Features	Live video preview, still images and video capture, time-lapse capture, exposure and white-balance controls, dark-field correction, digital binning, image processing, measurement tools (lines, arcs, polygons), segmentation and counting, image-stitching, extended depth-of-field, HDR, fluorescence color-mapping	Live video preview, still images and video capture, exposure control, color adjustment, measurement tools (lines, arcs, polygons)

Packing List

Handheld Digital Microscope
Removable Grip
Ball-Joint Stand
Metal Stand

⚠️ Attention CA Residents: Prop 65 Warning
